Introduction
The equipment can be connected with automatic screen printing machine to become a new production line for 4 functions: cold-foil,wrinkle,snowflakes,spot UV.This production line will greatly improve printing efficiency and bring higher benefits to customers.The production can be equipped with a chiller(optional).
Solution: Silk screen machine+ automatic cold foil machine+stacker
(Cold foil effect)
(Snowflake Effect)
(wrinkle effect)
(Spot UV Effect)

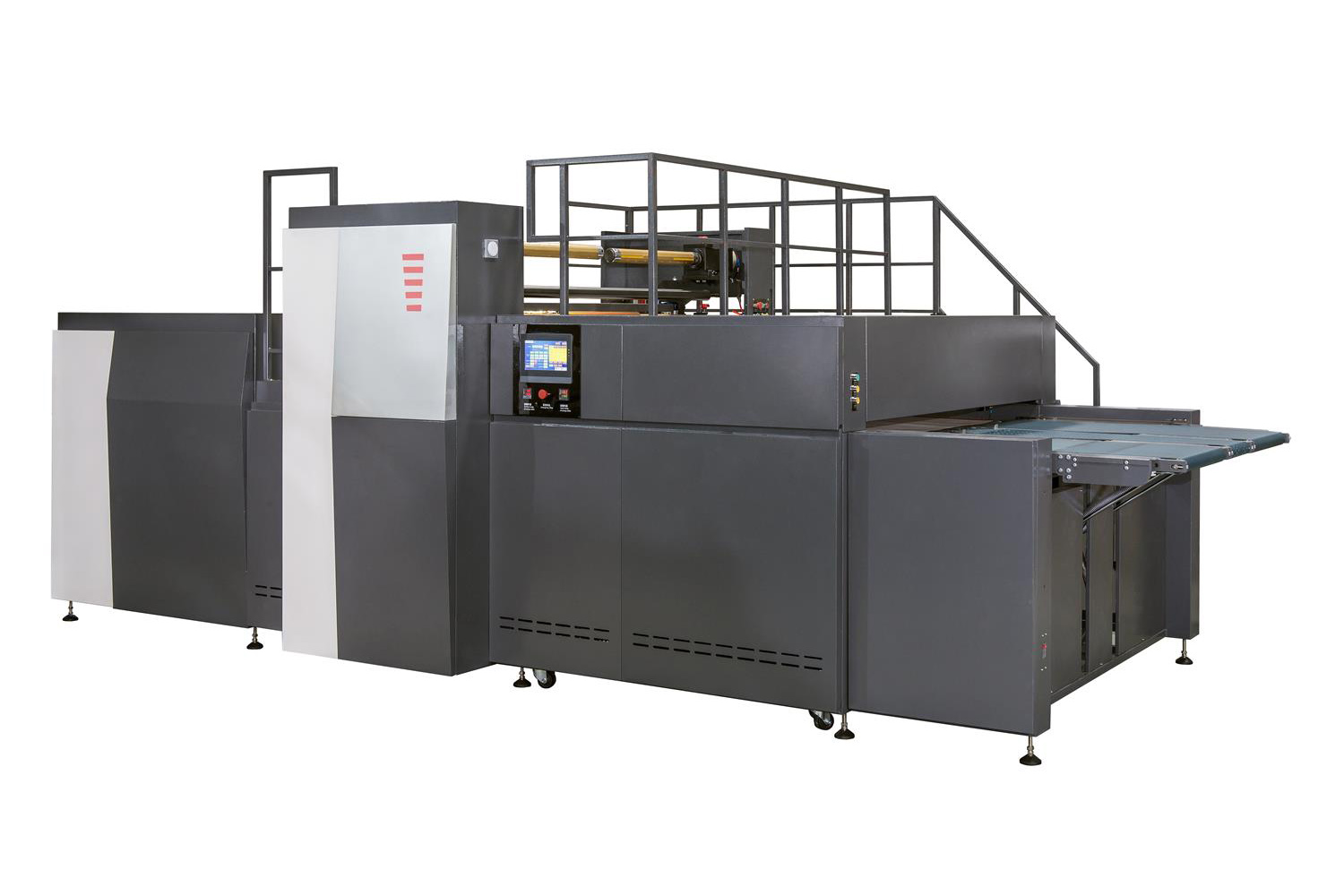

Cold foil machine Parameters
| Model | LT-106-3 | LT-130-3 | LT-1450-3 |
| Max sheet size | 1100X780mm | 1320X880mm | 1500x1050mm |
| Min sheet size | 540x380mm | 540x380mm | 540x380mm |
| Max print size | 1080x780mm | 1300x820mm | 1450x1050mm |
| Paper thickness | 90-450 g/㎡ cold foil:157-450 g/㎡ |
90-450 g/㎡ cold foil:157-450 g/㎡ |
90-450 g/㎡ cold foil:157-450 g/㎡ |
| Max diameter of film roll | 400mm | 400mm | 400mm |
| Max width of film roll | 1050mm | 1300mm | 1450mm |
| Max delivery speed | 500-4000sheet/hCold foil: 500-2500sheet/h | 500-3800sheet/hCold foil: 500-2500sheet/h | 500-3200sheet/hCold foil: 500-2000sheet/h |
| Total power of equipment | 45KW | 49KW | 51KW |
| Total weight of equipment | ≈5T | ≈5,5T | ≈6T |
| Equipment size (LWH) | 7117x2900x3100mm | 7980x3200x3100mm | 7980x3350x3100mm |
